3025 Anson One — Building Directory Upgrade

Building directory upgrade at 3025 Anson, Coquitlam: site measurements, new layout, black and brushed aluminum fabrication, individual lettering and standoff preassembly.

In Production

01 · BEFORE

Existing Shop Site Survey

Multiple exterior and interior views document the starting condition. These photographs preserve the starting point for comparison with the design concepts and project results.

02 · ACTION PLAN

Planned Shop Transformation

The approved visual plan coordinates the new menu presentation, cabinetry and shelving finish, showcase recovering, service-area organization and two feature window murals.

03 · TRANSFORMATION JOURNAL

Follow the Work as It Happens

This page is designed to grow with the project—from concept and material selection through onsite installation and the completed shop.

1. PLAN & ARTWORK

2. FUTURE INSTALLATION PREVIEW

3. PREP & INSTALLATION

4. FINAL LOOK

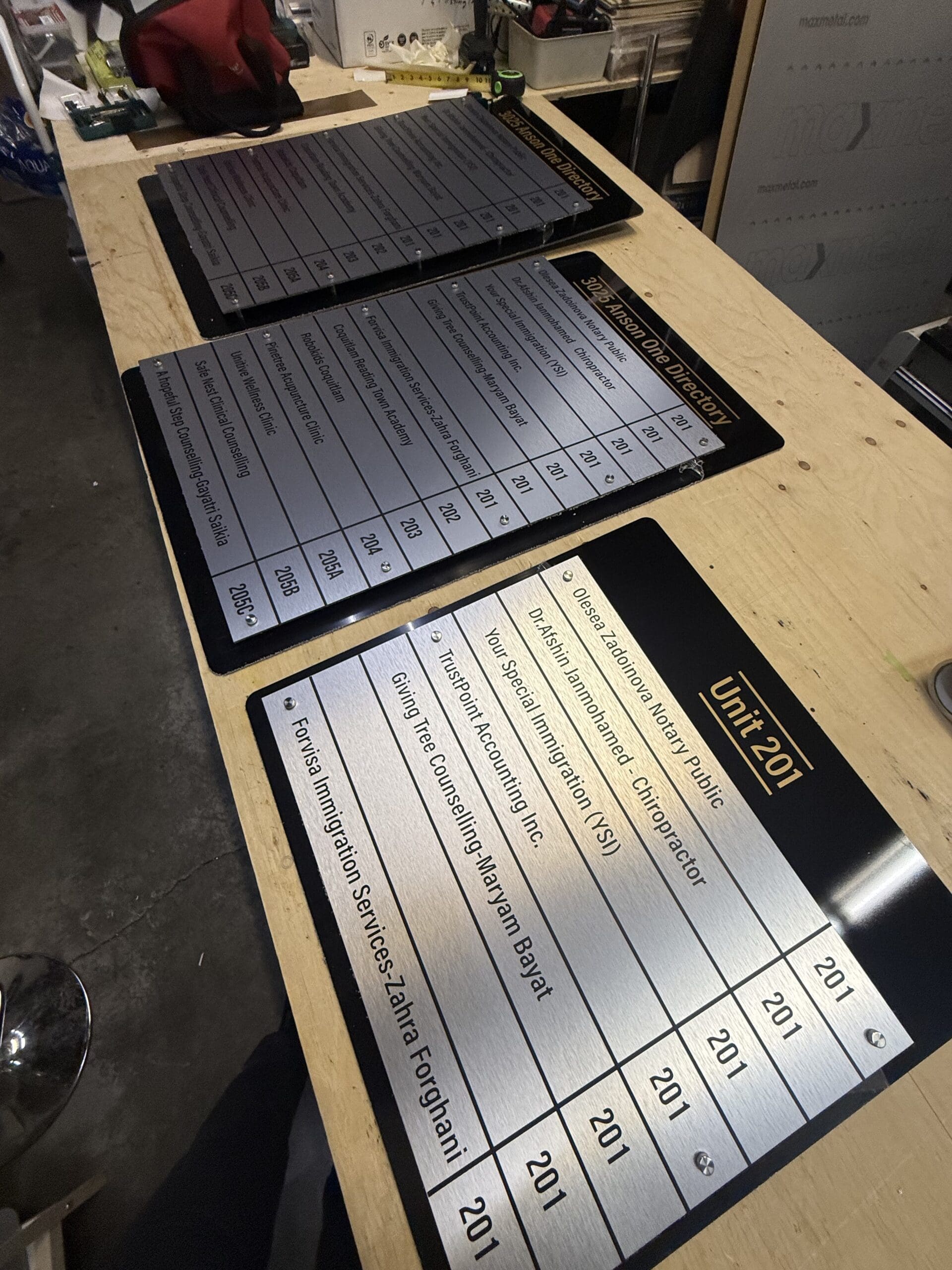

Directory boards preassembled in the workshop with black backings, gold headers and standoff hardware.

Signs Depot is upgrading the building business directory at 3025 Anson in Coquitlam. The work brings together a new tenant layout, black backing boards, brushed aluminum panels, individual cut lettering and gold header lettering. The photos document the process from the existing directory and site measurements through workshop preassembly with standoff hardware.

Current stage: Fabricated and preassembled in the workshop, prepared for installation.

01 · Existing Directory & Site Measurements

We documented the existing directory and measured its height, width, row spacing and mounting positions to guide the replacement design.

Existing directory board at 3025 Anson One before the upgrade.

Measuring the existing directory height and mounting positions.

Checking the existing directory width for the replacement layout.

Measuring tenant-row spacing on the existing directory.

02 · New Directory Design & Layout

The new layout pairs a black backing board with a brushed aluminum face, clear tenant rows and a dedicated suite-number column.

New directory design and layout with a black backing board and brushed aluminum face.

03 · Board Fabrication & Machining

The black board and brushed aluminum panel were fabricated, with mounting holes machined for the standoff assembly.

Black board prepared for fabrication of the new directory backing.

Machining the black board as part of the directory fabrication process.

Brushed aluminum panel fabricated with machined mounting holes.

04 · Individual Lettering Cutting & Application

Tenant names, suite numbers and divider lines were cut individually, then aligned and applied to the brushed aluminum panel.

Individual tenant names and divider lines cut and prepared for application.

Cut suite numbers and divider lines prepared for the directory layout.

Individual lettering and suite numbers applied to the brushed aluminum panel.

05 · Gold Header & Standoff Preassembly

Gold header lettering was applied to the prepared black board. The directory panels were then preassembled with standoff hardware in the workshop.

Black board with gold header lettering and brushed aluminum panel preassembled with standoffs.
